Technical Blueprint & Layer Architecture
3D Exploded Anatomy & Structural Integrity
Every WIDEWAY technical outdoor & hiking bag collection is engineered with multi-tier reinforced ergonomics, stress-tested bar-tacks (150N pull rating), ISO-compliant water-repellent shell fabrics, and high-density foam buffers. Deconstruct the interior layering below:
Outer Armor Layer
600D–1680D Ballistic Nylon or GRS rPET with DWR C6 coating
Impact Cushion Core
8mm–12mm high-density closed-cell EVA & PE honeycomb boards
Anti-Tear Seam Bonds
Nylon bonded thread #40/3 with double edge-binding reinforcement
Heavy-Duty Hardware
YKK / SBS reverse coil zippers & Duraflex acetal POM buckles

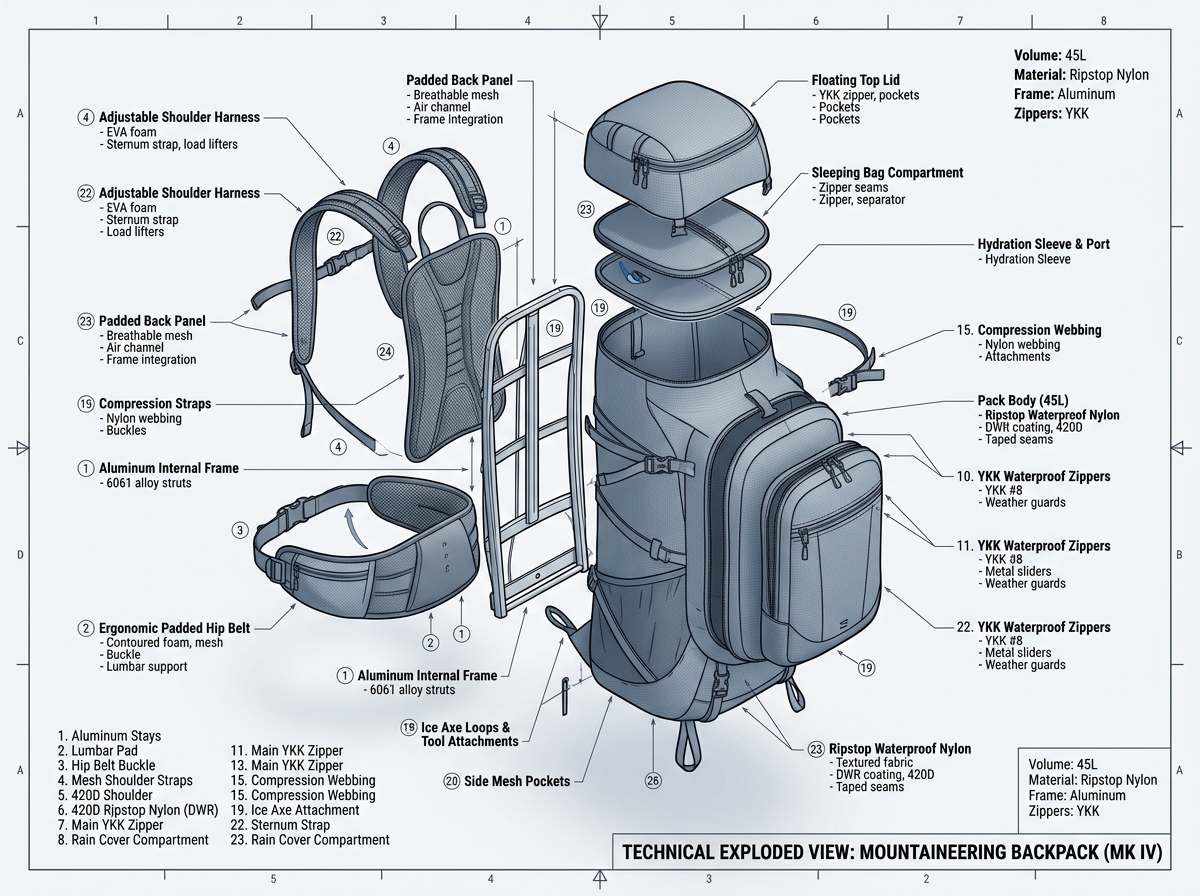

Fig: Multi-Layer Structural Assembly & Component Deconstruction
Engineering Reference
Technical Outdoor & Hiking Bag Collection Specification Matrix
| Model ID | Style Type | Main Fabric | Dimensions | Key Features | MOQ | Lead Time |
|---|---|---|---|---|---|---|
| WB-OD-3601 | Technical Hiking Pack | 420D Hex Ripstop Nylon with 1500mm PU Coating | 32 x 24 x 56 cm | Internal Aluminum Ergonomic Frame Stay, Hydration Bladder Sleeve, Stowaway Fluorescent Rain Cover | 500 Pcs / Color | 30–45 Days (China) / 45–60 Days (BD) |
| WB-OD-3602 | Mountaineering Rucksack | 600D High-Tenacity Polyester + 1000D Base | 34 x 26 x 68 cm | Floating Top Lid with Twin Pockets, Bottom Sleeping Bag Compartment with Divider, Ice Axe Loops | 500 Pcs / Color | 30–45 Days (China) / 45–60 Days (BD) |
| WB-OD-3603 | Trail Running Vest Pack | 70D Ultralight Ripstop Nylon + 3D Honeycomb Air-Mesh | 24 x 10 x 40 cm | Dual Front Flask Pockets, 2L Hydration Reservoir Chamber, Zero-Bounce Sternum Harness | 500 Pcs / Color | 30–45 Days (China) / 45–60 Days (BD) |
| WB-OD-3604 | Waterproof Dry Pack | 500D Heavy Tarpaulin with High-Frequency Welded Seams | 30 x 18 x 52 cm | Submersible Roll-Top Closure, Front Water-Repellent Splash Zip, Padded Lumbar & Shoulder Straps | 500 Pcs / Color | 30–45 Days (China) / 45–60 Days (BD) |
